GNMANT v2: Antena Multifrecuencia de Doble Banda

La GNMANT v2 es la antena multi-GNSS y multibanda más reciente de Meinberg, con soporte integral para prácticamente todos los servicios GNSS, así como para una variedad de sistemas de aumentación regionales y comerciales, incluyendo servicios de corrección de banda L como Fugro AtomiChron®.

Esta eficaz solución de antena personalizada, optimizada para las aplicaciones de temporización y sincronización de Meinberg, líderes en la industria, se encuentra en la característica carcasa tipo domo con clasificación IP65 de Meinberg para su funcionamiento en cualquier condición climática.

Enlaces:

Caracteristicas

Characteristics

Compatible Receivers Compatible with all GNS, GNM, or GXL Type Meinberg reference clocks
Frequency Range 1160 MHz – 1255 MHz (Lower Band)
1539 MHz – 1606 MHz (Upper Band)

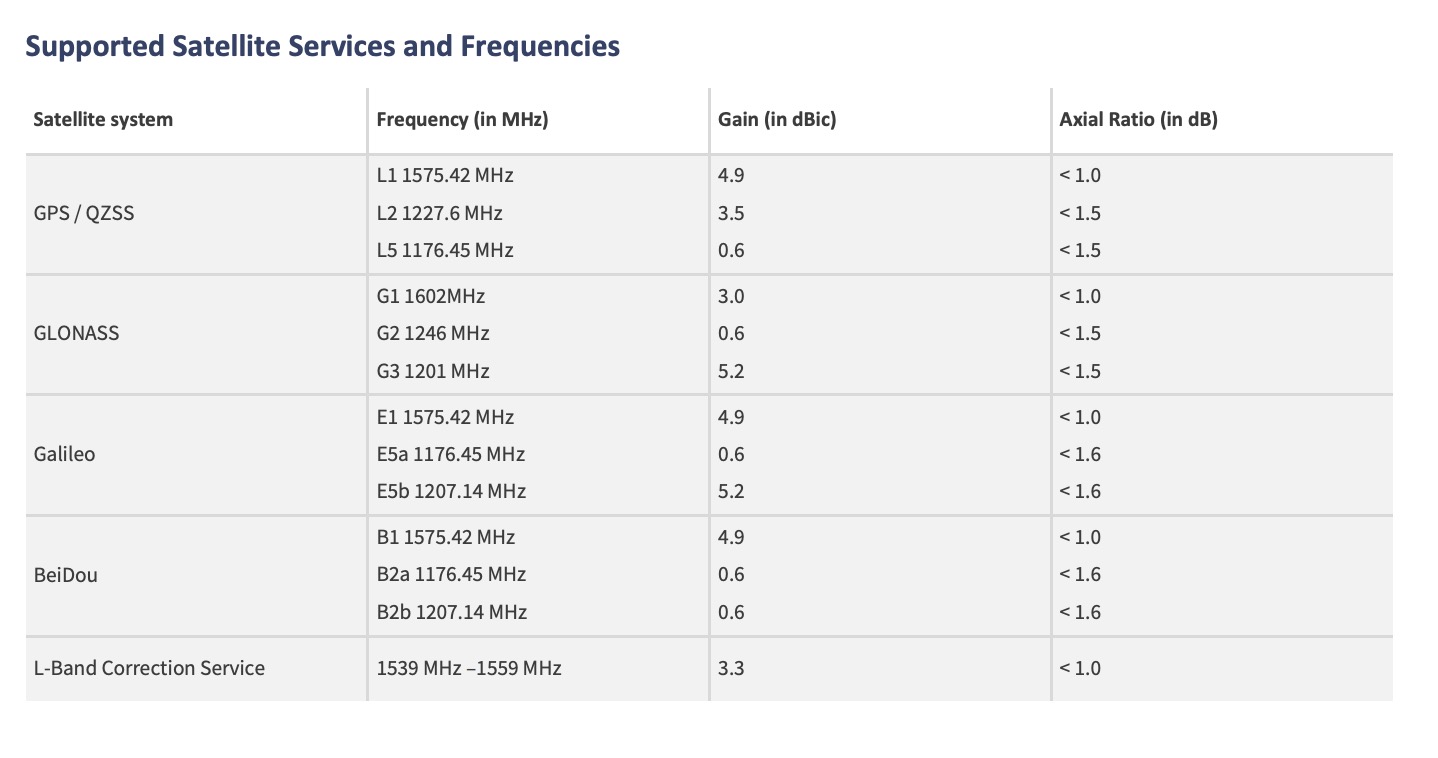

Supported Services GPS/QZSS
L1 1575.42 MHz
L2 1227.6 MHz
L5 1176.45 MHzGLONASS
G1 1602 MHz
G2 1246 MHz
G3 1201 MHzGalileo
E1 1575.42 MHz
E5a 1176.45 MHz
E5b 1207.14 MHzBeiDou
B1 1575.42 MHz
B2a 1176.45 MHz
B2b 1207.14 MHzL-Band Correction Services
1539 to 1559 MHz
Overall LNA Gain Typically 37 dB
Antenna Connector Type-N connector
Operating Voltage 3.6 V to 5.5 V DC (supply voltage via antenna cable)
Form Factor ABS plastic case for outdoor installation
Grounding M8 threaded bolt and hex nut for use with corresponding ring lug
Antenna Amplification (Antenna Input to RF Output) Lower Band: 35 dB +/- 2 dB
Upper Band: 37 dB +/- 2 dB

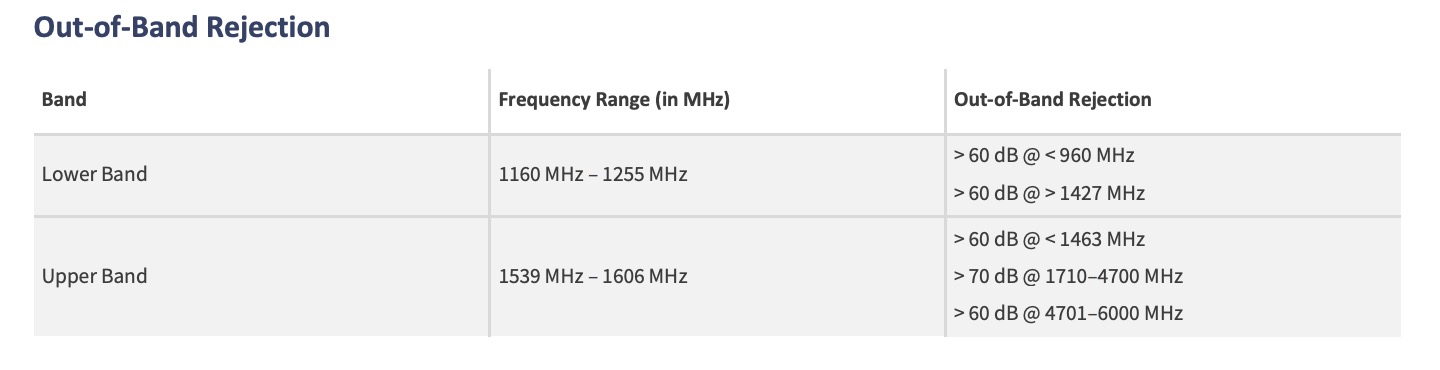

Out-of-Band Rejection Lower Band (1160 MHz – 1255 MHz)
< 960 MHz | > 60 dB
> 1427 MHz | > 60 dBUpper Band (1539 MHz – 1606 MHz)
< 1463 MHz | > 60 dB
> 1710 MHz – 4700 MHz | > 70 dB
< 4701 MHz – 6000 MHz | > 60 dB
Physical Dimensions Refer to Datasheet
IP Rating IP65
Product Weight 1.4 kg (3.1 lbs), including mounting kit
Supported Temperature Operation: -70 °C to +85 °C (-94 °F to 185 °F)
Storage: -70 °C to +95 °C (-94 °F to 203 °F)
Supported Humidity Max. 95 % (non-condensing) at 40 °C (104 °F)
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
