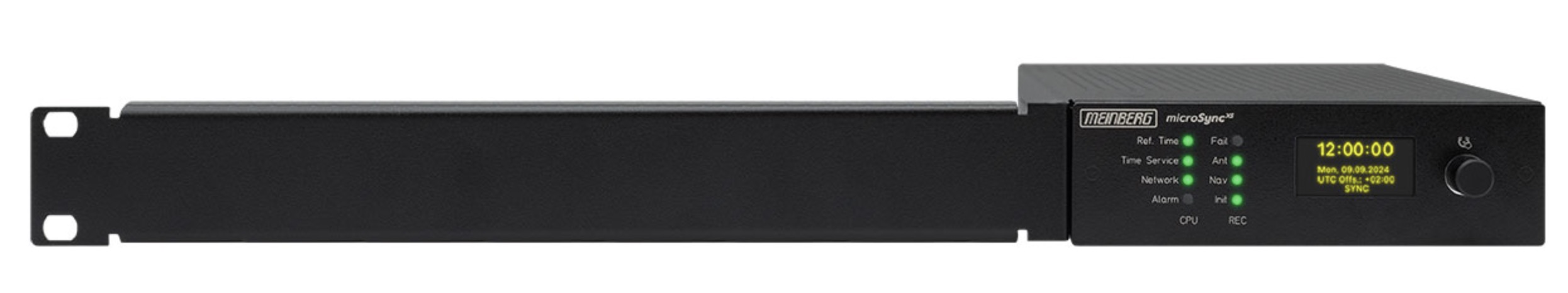

microSync XS : EL servidor de Tiempo PTP más compacto

El microSync XS es ​​un servidor de tiempo NTP y PTP sincronizado con GNSS con todas las funciones. Con dos puertos de red compatibles con PTP, que funcionan en modo Master o Slave ( transmisor o receptor de tiempo) , el microSync XS puede utilizarse como reloj maestro de alta precisión, reloj de límite o reloj convencional.

Naturalmente, el microSyncXS también es un potente servidor NTP y generador de señales de reloj programable, capaz de producir una amplia variedad de señales de referencia a través de tres salidas de pulsos programables (p. ej., PPS, 10 MHz, código de tiempo DCLS)

  • Receptores:
    • GPS: GPS
    • GNSS-UC : GPS + Galileo
    • GNSS: GPS+Galielo + Glonass+ Beidou
  • Salidas :
    • 2 x puertos SFP para servicios configurables en NTP /  PTP-IEEE1588
    • 3 x  SMA Programables, para señales TTL de sincronización configurables (PPS, PPM, PPH, IRIG DCLS, DFC77 Marks,….)
  • Osciladores (datos de los osciladores)
    • OCXO-SQ (estándar)
    • OCXO-HQ

Garantía: Tres (3) años de garantía Hardware.  Soporte técnico vía teléfono o E-Mail, incluyendo actualizaciones de Firmware por la vida del equipo

Otros equipos de la familia microSync

Enlaces relacionados:

Si desea una cotización de un equipo o hoja de características no dude en ponerse en contacto con nosotros, haciendo click en este enlace



Caracteristicas microSync XS:

Supported PTP Profiles Default Profiles:
– E2E IEEE 1588-2008 Profile
– P2P IEEE 1588-2008 ProfilePower Profiles:
– IEEE C37.238-2011 *
– IEEE C37.238-2017 *
– IEC/IEEE 61850-9-3 Power Utility Profile *Telecom Profiles:
– ITU-T G.8265.1 *
– ITU-T G.8275.1 *
– ITU-T G.8275.2Broadcast Profiles:
– DOCSIS 3.1
– SMPTE ST 2059-2 *
– AES67 MediaAVB/TSN:
– IEEE 802.1ASAutomotive Profile:
– AUTOSAR* including profile extensions
Operating Mode
  • PTP V2
  • PTP V1 (Option: Performance Level C only)
  • NTP
Network Protocols IPv4, IPv6
NTPv3, NTPv4
PTPv2
IEC 62439-3 (PRP)
DHCP, DHCPv6
DSCP
IEEE 802.1q VLAN filtering/tagging
IEEE 802.1p QOS
SNMPv1/v2/v3
Remote Syslog Support (UDP)
LDAP, TACACS+, RADIUS authentication
Interface Single serial RS-232 interface
Available PTP Performance Level microSyncs are provided with a license that allows a specific performance level to be achieved with the IEEE1588 implementation. There are three Performance Levels available:

Performance Level Max. Unicast Clients Max. Delay Requests
per Second / Hybrid Mode
PL-A 8 1024
PL-B 256 32768
PL-C 512 65536
Network Interface 2x SFP (LAN 0, LAN 1) Gigabit Ethernet (GbE), 10/100/1000 Mbit, RJ45 or 1000FX (SFP)
Management, NTP, PTP Master & Slave Operation
Synchronous Ethernet – Compliant with ITU-T G.8261, G.8262 and G.8264
Accuracy NTP: ≤100 μs, PTP: ≤20 ns
Universal Serial Bus (USB) Ports USB Type-A, usable for the following purposes:

  • Backing up and restoring a microSync configuration (or rolling a shared configuration out to multiple devices)
  • Backing up log files
  • Uploading and downloading cryptographic certificates
  • Installing firmware updates
  • Restoring factory settings using a specially prepared ‘USB key’
SMA Connectors 3 x SMA connectors for different programmable pulses outputs (PPS, PPM, PPH, TC DCLS, PTTI 1PPS …)
Oscillator Options OCXO SQ
1 Day Holdover Performance: ± 65 µs
1 Year Holdover Performance: ± 4.7 sOCXO HQ
1 Day Holdover Performance: ± 10 µs
1 Year Holdover Performance: ± 788 ms
Power Consumption typ. 16.5 W
Operating Voltage 20 V – 60 V DC
Form Factor Housing Type 6.33 inch, desktop, 1U
148 mm x 236 (264) mm x 44 mm / 5.8 inch x 9.4 (10.4) inch x 1.7 inch / width x depth (with connectors and control element) x height
Housing Material: Steel
Atmospheric Pressure 540 to 1,600 hPa
Operating Altitude Up to 5,000 m (16,404 ft) above sea level
IP Rating IP30
Product Weight 1.35 kg (2.98 lbs)
Supported Temperature -20 °C to 55 °C (-4 °F to 131 °F)
Storage Temperature -30 °C to 70 °C (-22 °F to 158 °F)
Supported Humidity 5 % to 95 % at 40 °C, non-condensing
Compliances
  • CB Scheme
  • CE
  • FCC
  • UL
  • CSA
  • WEEE, Waste of Electrical and Electronic Equipment
  • RoHS, Restriction of Hazardous Substances
  • REACH, Registration, Evaluation, Authorization and Restriction of Chemicals
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
